Wow--a lot of work---and very impressive!

I'm looking for led bulbs for the old fashioned candles that go in the windows.

I'd like to have changeable houses to go on top---without the heat and fire risk

Steve has inspired me...kind of!

These houses are very interesting. I have been wanting LED bulbs for my houses since I first starting making houses and never seemed to find what I was looking for. I will definitely search for those lights. What kind of cord/socket are you using for these?

I'm working on a C6 string with the E10 sockets. Justed wired up in parallel instead of in series like the vintage ones.

I'll post some info on the light string after I get the houses built.

Steve

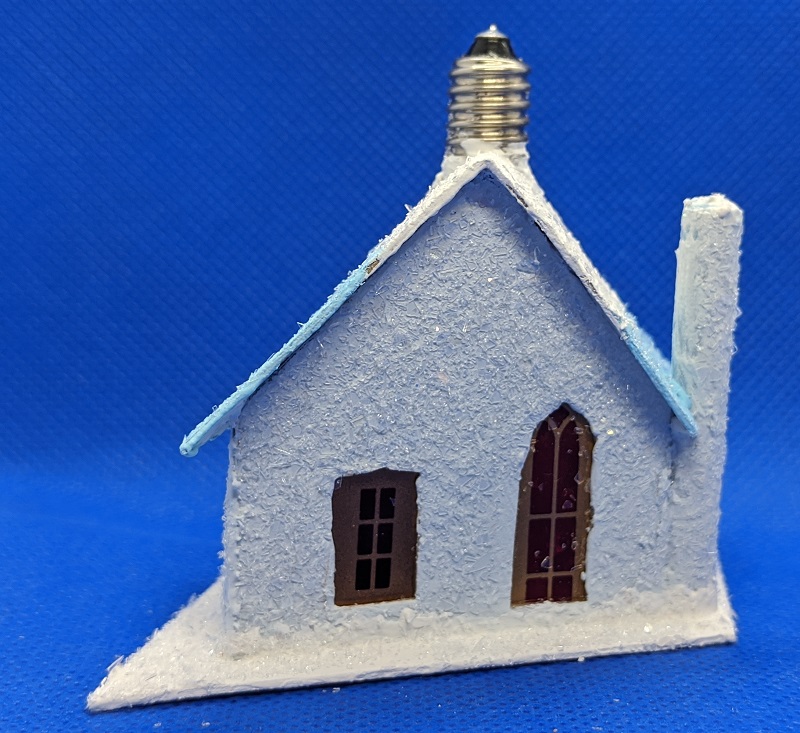

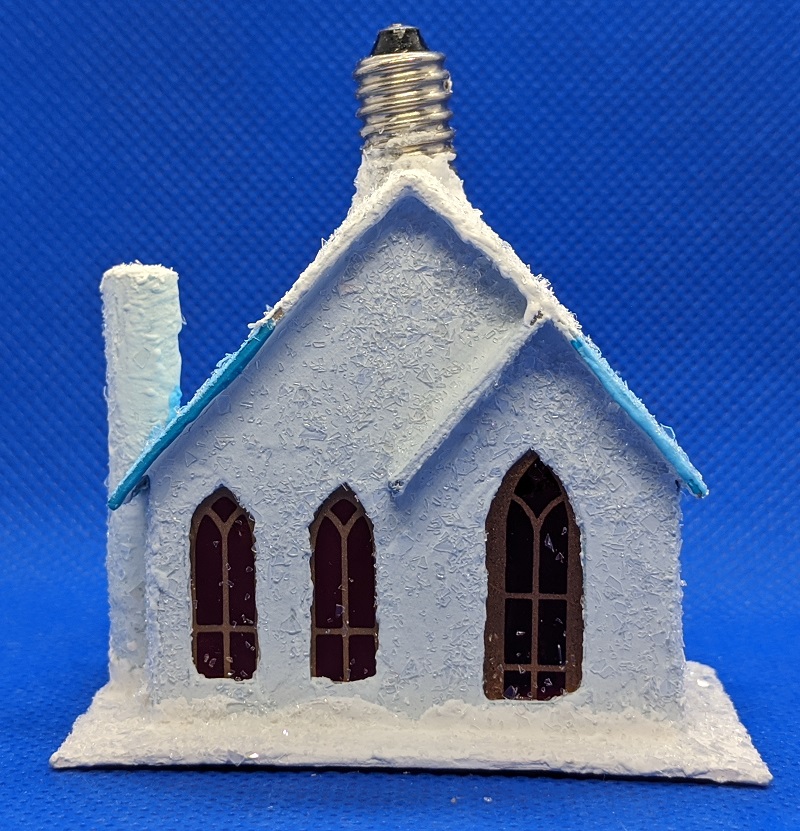

I got 2 more houses built. I need to make the last two.

The last two, I don't have a pattern for yet.
I need to sit down and lay them up.

Steve

Ok, so how am I going to light these.

All the parts are from various eBay storefronts.
Very cheap.

I work with electronics both professionally and as a hobby.

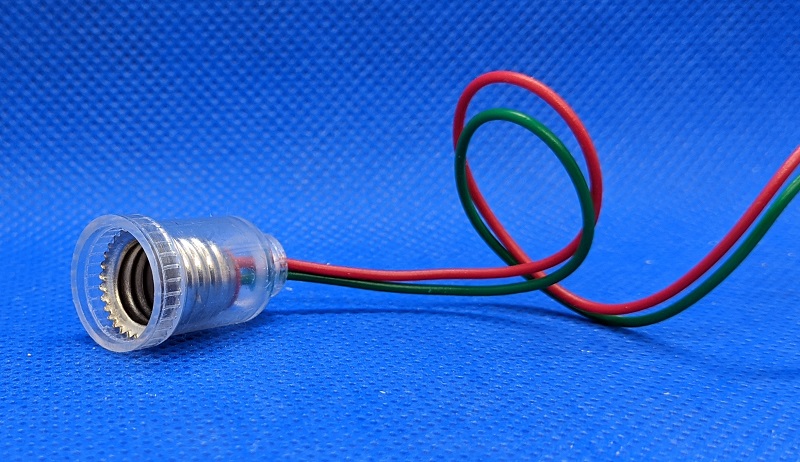

I started with the following E10 socket. As most know the E10 socket is what a C6 lamp screws into.

So starting with the E10 socket below:
I needed a way to pull the socket out of the plastic housing.
For 2 reasons.

1 to be able to spray paint the housings black.

And I needed to wire them up in parallel, not series like the vintage version of the C6 light string.

I found a pretty cool way to pull the sockets out of the houses.
I can't remember where I first saw it.

It might have even been on another of Paul's Christmas related websites.

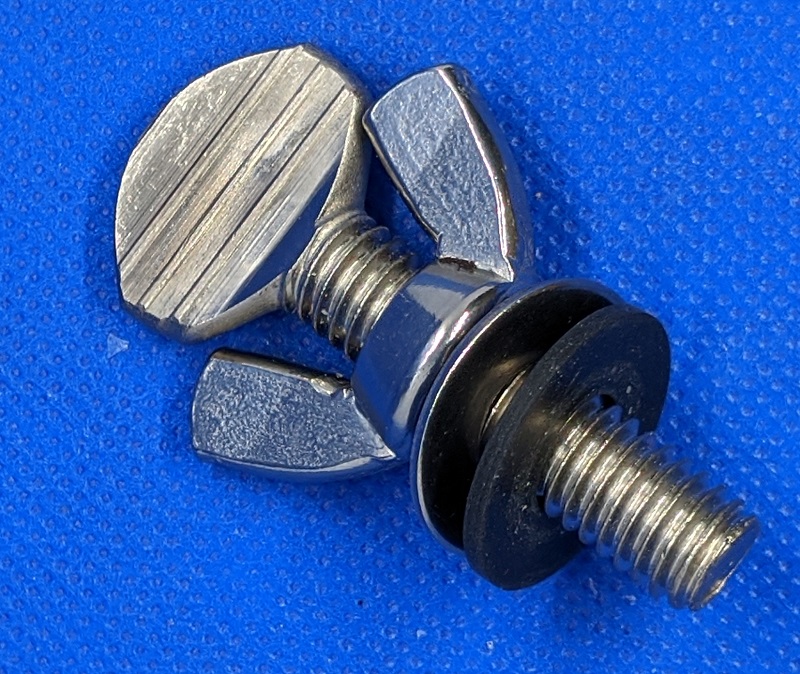

It's made of a 3/6" x 18 pitch bolt with a wing nut and a rubber and flat washer.

You screw the bolt into the socket, then turn the wing nut till the socket pops out.
Once the sockets are removed. They were painted with some black paint.

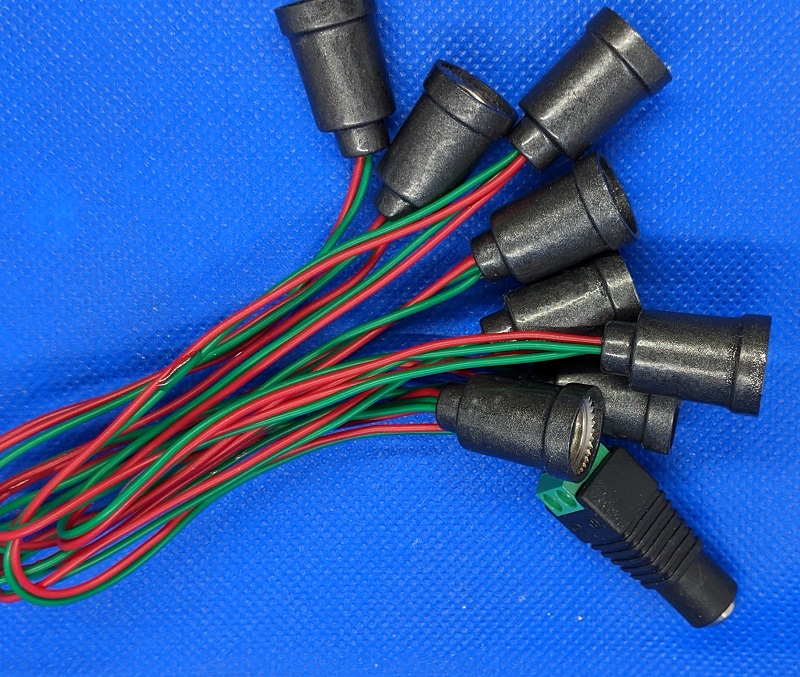

then soldered together in a parallel string of 8 sockets.

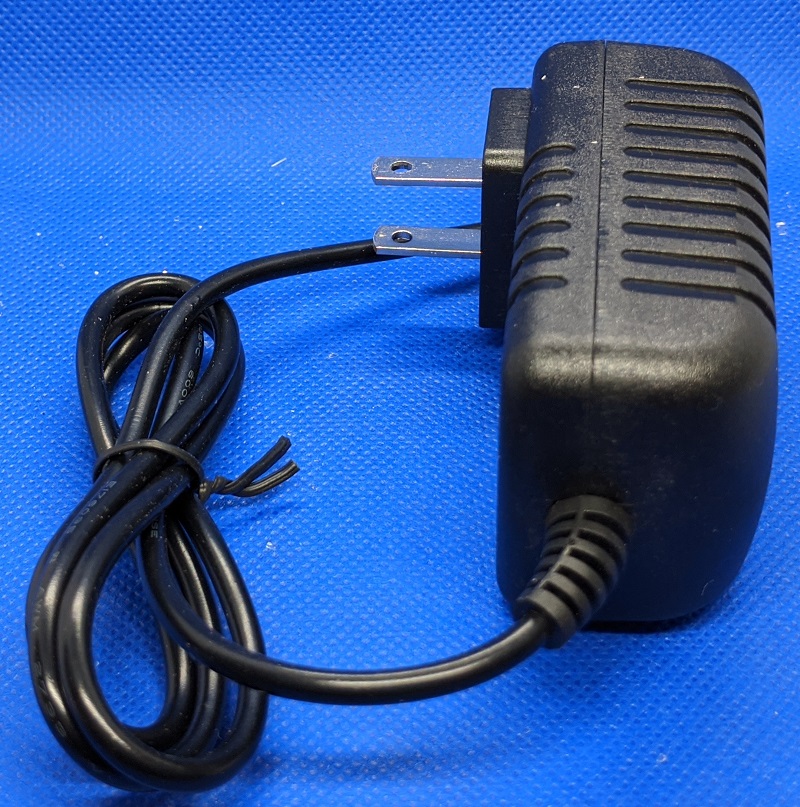

a 12 Vdc power supply finished it up.
Now to get the last 2 houses built and it should be ready to go.

Steve

Wow---cant wait

Well, this is beyond my comfort zone, but I’m enjoying your progress.

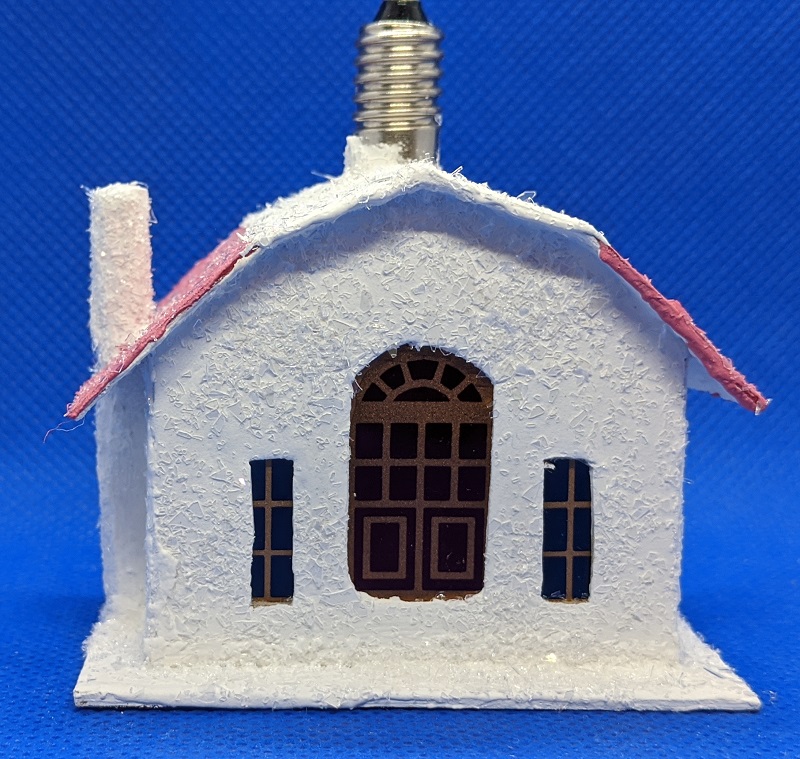

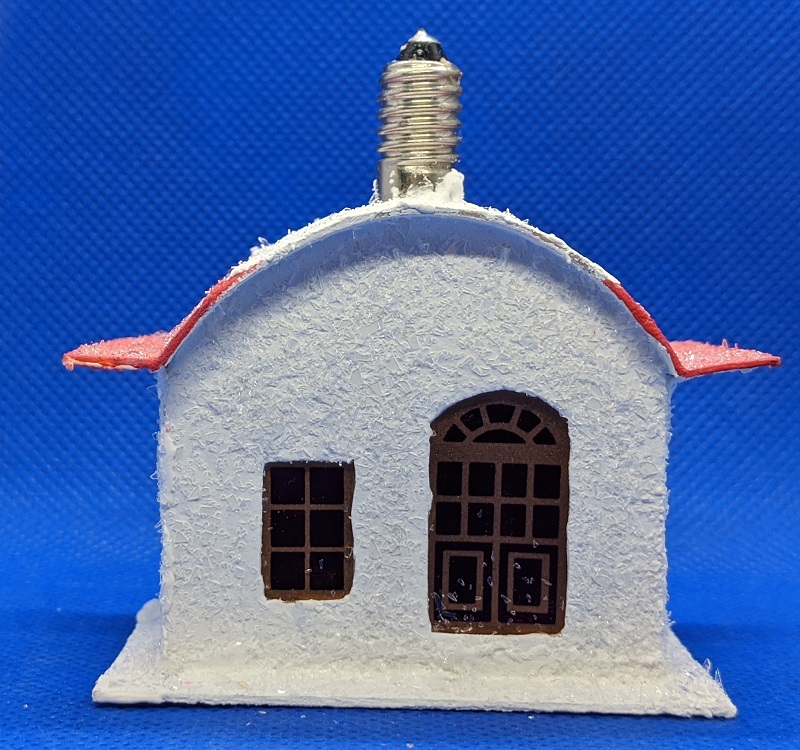

So, here's the last two houses.
And here is all 8 hanging off of their light string.
All with my custom led bulbs that screw into the custom light string.
Also are a few more of my light-up decorations.
And lastly, I made some LEDs I can put in my Dolly repros.


I wish they showed up better when they photographed.


Now what to make next?

Steve

Wow! These are just awesome!

Amazing! And beautiful.
