"tiny cottage"...perfect for the "pack-o-fun" village...

Post by **Howard** » Fri Jan 02, 2015 1:06 pm

Greetings to all…

Another new year…and another new project…this one is small and simple…and fits in perfectly with the “pack-o-fun” houses…here’s a link to that topic…

http://www.cardboardchristmas.com/forum ... ?f=2&t=723

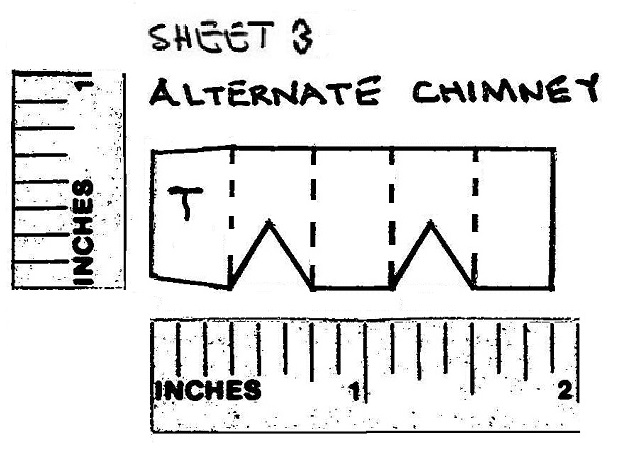

The patterns for this tiny cottage are shown below…there are two chimney options…a tall, side mount chimney or a roof mount chimney…

Add a window on the right side…(the same as the left side)…if you use the roof mount chimney…and leave out the small notch on the right side of the roof…

The base measures 2 5/8” x 3 1/4” x 5/8” thick…

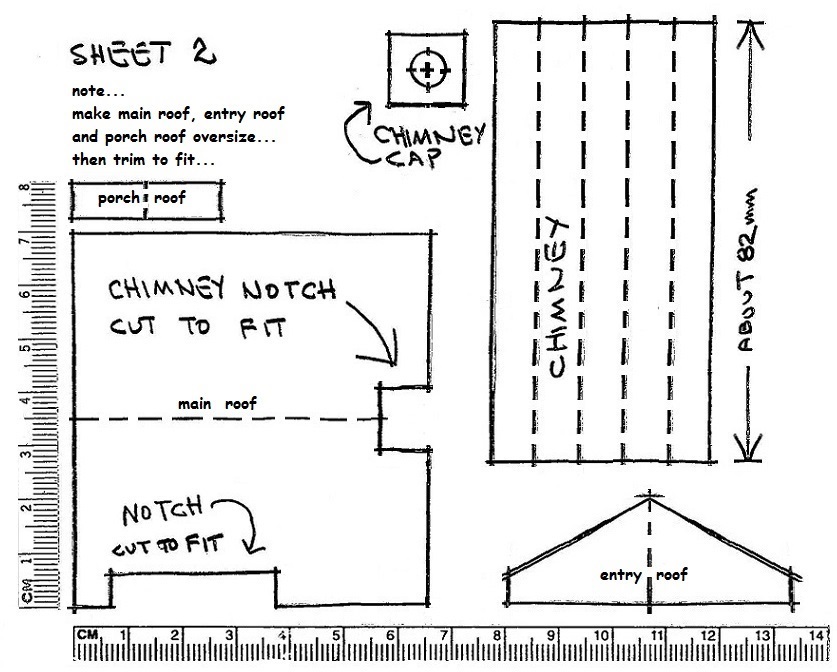

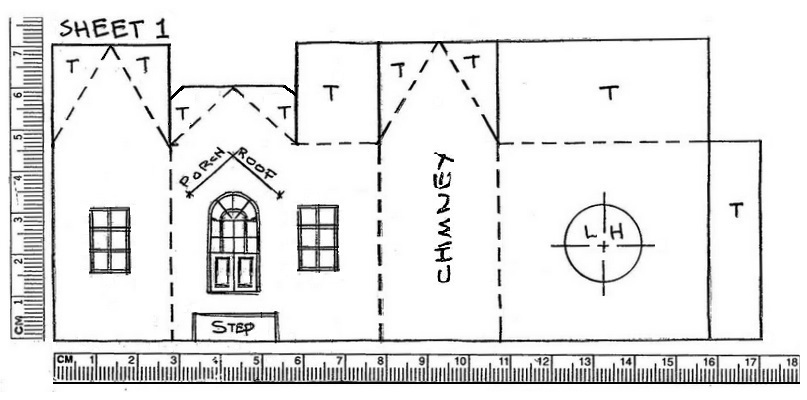

Note…sheet 1 and 2 are shown with metric scale rulers…the reason?…a long story…except to say that due to the international interest in the Cardboard Christmas Forum…I drew them that way…

“Vive La France“…

My very best regards…Howard…

Post by **Howard** » Fri Jan 02, 2015 1:13 pm

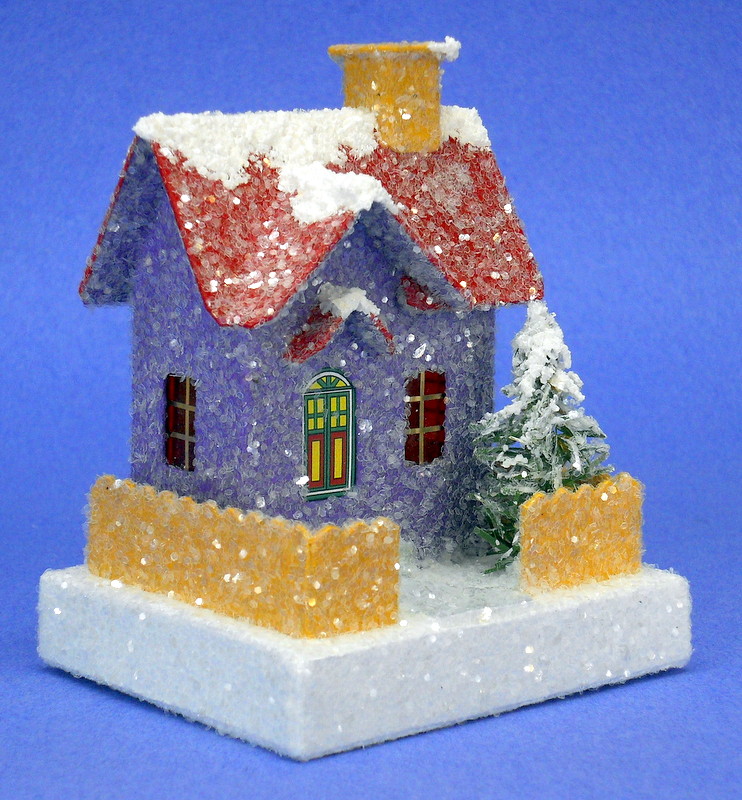

Here is the completed "tiny cottage"...i plan to post more patterns for small houses in 2015...they are fun to make and easy to store...

my very best regards...Howard...
